RRT Algorithm Simulation

The Rapidly Exploring Random Trees (RRT) algorithm is a computational method used in motion planning for robots, rapidly exploring the configuration space to generate feasible paths from a start to a goal state. It is particularly effective in navigating complex and high-dimensional spaces

RRT Algorithm

• The path plan should actually work on a robot. If the path plan makes the robot turn at sharp angles but the robot can’t move at sharp angles (like a car), that path plan shouldn’t be allowed.

• The path plan should be as close to optimal as possible. While it’s nice to find any path plan that gets the robot from a start location to a goal location, that isn’t enough unfortunately. We’d like something that’s somewhat efficient. Not only will it help the robot complete its task as fast as possible, but it’ll also conserve its precious battery life.

• The path plan should avoid colliding with walls. This obviously goes without saying. Robots can be pretty expensive, and crashing is never a good thing. My little robot alone cost me well over a thousand bucks.

One of the most popular algorithms for coming up with a path plan that tries to satisfies these conditions is called Rapidly-exploring Random Trees (RRT). Since a picture is worth a thousand words, check out the diagram below. Let’s suppose the robot has to go from a start location (the red dot) to a goal location (the green dot) in a simple map without any obstacles. Basically, we’ll start off with a tree that has a root node representing the start position of the robot. After that, we’ll build the tree up gradually. How? We’ll take a bunch of random samples of the map, make a new node for each random sample, and insert each new node into the tree somehow. Once the tree has a node that’s close enough to the goal position of the robot, we’re done.

Here we are using the RRT algorithm to perform motion planning in 2-DoF environments. As before, the mobile robot’s position is \(\normalsize \theta = [𝑥, 𝑦]^𝑇\).

Implementing the RRT algorithm below. This code should be able to work with an arbitrary number of circular obstacles with 2 conditions:

• The bounds of the workspace are \(\normalsize 𝑥 ∈ [0, 1], \, 𝑦 ∈ [0, 1]\) • The motion plan must end within \(\normalsize \epsilon = 0.1\) units of the goal

Implementations

Python

Code

import numpy as np
import matplotlib
matplotlib.use('Agg')  # Set the backend to a non-interactive backend
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib.animation import PillowWriter, FuncAnimation

# Define start and goal positions
theta_start = {'coord': np.array([0, 0]), 'parent': None}
theta_goal = np.array([1, 1])

# Workspace bounds
x_bounds = [0, 1]
y_bounds = [0, 1]

# Define obstacles
obstacles = np.array([
    [0.5, 0.3, 0.2],
    [0.7, 0.7, 0.2],
    [0.6, 0.4, 0.1],
    [0.4, 0.3, 0.2],
    [0.1, 0.75, 0.3]
])

# RRT parameters
epsilon = 0.1  # Goal threshold
delta = 0.05   # Step size
N = 1000       # Number of iterations

# Initialize tree
G = [theta_start]

# Visualize environment setup
fig, ax = plt.subplots()
ax.grid(True)
ax.set_xlim(x_bounds)
ax.set_ylim(y_bounds)
ax.set_aspect('equal')

# Plot obstacles
for obstacle in obstacles:
    circle = Circle(obstacle[0:2], obstacle[2], color='gray', fill=False)
    ax.add_patch(circle)

# Plot start and goal
start_plot, = ax.plot(theta_start['coord'][0], theta_start['coord'][1], 'ko', markerfacecolor='k')
goal_plot, = ax.plot(theta_goal[0], theta_goal[1], 'ko', markerfacecolor='k')

# This flag is used to stop the animation once the goal is reached
goal_reached = False

# Animation update function
def update(frame):
    global G, goal_reached

    if goal_reached:
        return

    theta_rand = theta_goal if np.random.rand() < 0.2 else np.random.rand(2)
    distances = [np.linalg.norm(node['coord'] - theta_rand) for node in G]
    theta_near_index = np.argmin(distances)
    theta_near = G[theta_near_index]
    vec_to_rand = theta_rand - theta_near['coord']
    vec_to_rand = delta * vec_to_rand / np.linalg.norm(vec_to_rand)
    theta_new = {'coord': theta_near['coord'] + vec_to_rand, 'parent': theta_near_index}

    if not is_collision(theta_new['coord'], obstacles):
        G.append(theta_new)
        ax.plot([theta_near['coord'][0], theta_new['coord'][0]], [theta_near['coord'][1], theta_new['coord'][1]], 'k-', linewidth=2)
        ax.plot(theta_new['coord'][0], theta_new['coord'][1], 'o', color='gray', markerfacecolor='gray')

        if np.linalg.norm(theta_new['coord'] - theta_goal) < epsilon:
            # Draw the final path in orange
            current = theta_new
            while current['parent'] is not None:
                parent = G[current['parent']]
                ax.plot([current['coord'][0], parent['coord'][0]], [current['coord'][1], parent['coord'][1]], color='orange', linewidth=3)
                current = parent
            goal_reached = True

# Collision checking function
def is_collision(coord, obstacles):
    return any(np.linalg.norm(coord - obstacle[0:2]) < obstacle[2] for obstacle in obstacles)

# Create the animation
ani = FuncAnimation(fig, update, frames=N, repeat=False)

# Save the animation as a GIF
gif_path = "RRT_main.gif"
writer = PillowWriter(fps=20)
ani.save(gif_path, writer=writer)

# Close the plot
plt.close()

MATLAB

Code

clear
close all

% Define start and goal positions
theta_start.coord = [0; 0];
theta_goal = [1; 1];

% Workspace bounds
x_bounds = [0, 1];
y_bounds = [0, 1];

% Define obstacles
% Each row is an obstacle with format: [center_x, center_y, radius]
obstacles = [
    0.5, 0.3, 0.2;
    0.7, 0.7, 0.2;
    0.6, 0.4, 0.1;
    0.4, 0.3, 0.2;
    0.1, 0.75, 0.3;
    % Add as many obstacles required, satisfying the condition of arbitrary
    % number of obstacles' inclusion
];

% RRT parameters
epsilon = 0.1; % Goal threshold
delta = 0.05;  % Step size
N = 1000;      % Number of iterations

% Visualize environment
figure
hold on
grid on
axis([x_bounds, y_bounds])
axis equal

% Plot obstacles
for i = 1:size(obstacles, 1)
    viscircles(obstacles(i, 1:2), obstacles(i, 3), 'Color', [0.5, 0.5, 0.5]);
end

% Initialize tree
theta_start.parent = 0;
G(1) = theta_start;

% Main RRT loop
for idx = 1:N
    if norm(G(end).coord - theta_goal) < epsilon
        break
    end

    % Random sample
    theta_rand = rand(2,1);

    % Nearest node
    [min_dist, theta_near_index] = min(vecnorm([G.coord] - theta_rand));
    theta_near = G(theta_near_index);

    % Step towards random sample
    vec_to_rand = theta_rand - theta_near.coord;
    if norm(vec_to_rand) > delta
        vec_to_rand = delta * vec_to_rand / norm(vec_to_rand);
    end
    theta_new.coord = theta_near.coord + vec_to_rand;

    % Collision check with all obstacles
    if isCollision(theta_new.coord, obstacles)
        continue;
    end

    % Add new node to tree
    theta_new.parent = theta_near_index;
    G = [G, theta_new];

    % Plotting
    plot(theta_new.coord(1), theta_new.coord(2), 'o', 'Color', [0.5, 0.5, 0.5], ...
    'MarkerFaceColor', [0.5, 0.5, 0.5]);
    line([theta_near.coord(1), theta_new.coord(1)], [theta_near.coord(2), theta_new.coord(2)], 'Color', 'k', 'LineWidth', 2);
end

% Trace back path
child_theta = G(end);
while child_theta.parent ~= 0
    parent_theta = G(child_theta.parent);
    line([child_theta.coord(1), parent_theta.coord(1)], [child_theta.coord(2), parent_theta.coord(2)], 'Color', [1, 0.5, 0], 'LineWidth', 3);
    child_theta = parent_theta;
end

% Plot start and goal
plot(theta_start.coord(1), theta_start.coord(2), 'ko', 'MarkerFaceColor', 'k');
plot(theta_goal(1), theta_goal(2), 'ko', 'MarkerFaceColor', 'k');

% Collision checking function

function collision = isCollision(coord, obstacles)
    collision = any(arrayfun(@(idx) norm(coord - obstacles(idx, 1:2)') < obstacles(idx, 3), 1:size(obstacles, 1)));
end

Result

Notice that centers is a matrix where each column corresponds to an obstacle center. Similarly, radii is a vector where the \(\normalsize 𝑖^{th}\) entry corresponds to the radius of the \(\normalsize 𝑖^{th}\) obstacle.

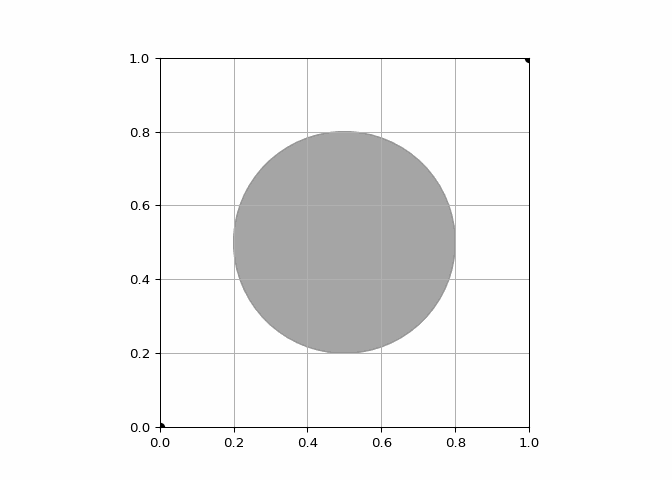

• Environment 1: One obstacle with \(\normalsize center \; 𝑐_1 = [0.55, 0.5]^𝑇 \; and \; radius \; 𝑟_1 = 0.3\).

RRT Algorithm for 1 Obstacle

Implementations

Python

Code

import numpy as np
import matplotlib
matplotlib.use('Agg')  # Set the backend to a non-interactive backend
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib.animation import PillowWriter, FuncAnimation

# Environment
theta_start = {'coord': np.array([0, 0])}
theta_goal = {'coord': np.array([1, 1])}
centers = np.array([[0.5], [0.5]])
radii = np.array([0.3])

# Parameters
epsilon = 0.1
delta = 0.1
N = 1000

# Initialize figure
fig, ax = plt.subplots()
ax.grid(True)
ax.set_xlim(0, 1)
ax.set_ylim(0, 1)
ax.set_aspect('equal', adjustable='box')

# Draw obstacles

for idx in range(len(radii)):
    circle = Circle(centers[:, idx], radii[idx], color=[0.5, 0.5, 0.5], alpha=0.7)
    ax.add_patch(circle)

# Plot start and goal
ax.plot(0, 0, 'ko', markerfacecolor='k')
ax.plot(1, 1, 'ko', markerfacecolor='k')

# Initialize tree
theta_start['parent'] = None
G = [theta_start]
final_path_plotted = False

def update(frame):
    global G, final_path_plotted
    if frame == 0 or final_path_plotted:
        return

    # Sample random joint position
    theta_rand = np.random.rand(2)

    # Find node in G nearest to theta_rand
    dist = [np.linalg.norm(node['coord'] - theta_rand) for node in G]
    theta_near_index = np.argmin(dist)
    theta_near = G[theta_near_index]

    # Take a step from theta_near towards theta_rand
    vec_to_rand = theta_rand - theta_near['coord']
    dist_to_rand = np.linalg.norm(vec_to_rand)

    theta_new = {}
    if dist_to_rand < delta:
        theta_new['coord'] = theta_rand
    else:
        theta_new['coord'] = theta_near['coord'] + delta * vec_to_rand / dist_to_rand

    # Check if theta_new is collision-free
    collision = False
    for jdx in range(len(radii)):
        center = centers[:, jdx]
        radius = radii[jdx]
        if np.linalg.norm(theta_new['coord'] - center) < radius:
            collision = True
            break

    if collision:
        return

    # If collision-free, add theta_new to tree with parent theta_near
    theta_new['parent'] = theta_near_index
    G.append(theta_new)

    # Plot node and edge
    ax.plot(theta_new['coord'][0], theta_new['coord'][1], 'o', color=[0.5, 0.5, 0.5], markerfacecolor=[0.5, 0.5, 0.5])
    ax.plot([theta_near['coord'][0], theta_new['coord'][0]], [theta_near['coord'][1], theta_new['coord'][1]], 'k-', linewidth=2)

    # If goal is close enough to the last node in G, plot the final path
    if np.linalg.norm(G[-1]['coord'] - theta_goal['coord']) < epsilon:
        next_theta = G[-1]
        while next_theta['parent'] is not None:
            prev_theta = G[next_theta['parent']]
            line, = ax.plot([next_theta['coord'][0], prev_theta['coord'][0]], [next_theta['coord'][1], prev_theta['coord'][1]], 'orange', linewidth=3)
            next_theta = prev_theta

        # Add final path to the animation
        final_path_plotted = True
        return line,


# Create the animation
ani = FuncAnimation(fig, update, frames=N, repeat=False)

# Save the animation
writer = PillowWriter(fps=20)
ani.save("RRT_1_obstacles.gif", writer=writer)

Result:

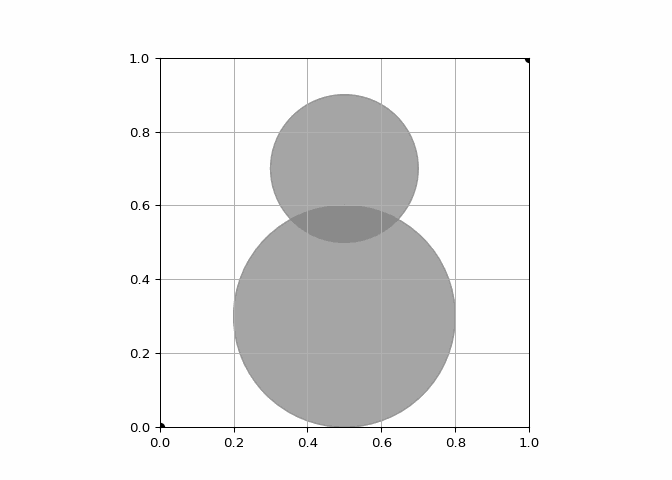

• Environment 2: One obstacle with \(\normalsize center \; 𝑐_1 = [0.5, 0.3]^𝑇 \; and \; radius \; 𝑟_1 = 0.3\). A second obstacle with \(\normalsize center \; 𝑐_2 = [0.5, 0.7]^𝑇 \; and \; radius \; 𝑟_2 = 0.2\)

RRT Algorithm for 2 Obstacles

Implementations

Python

Code

import numpy as np
import matplotlib
matplotlib.use('Agg')  # Set the backend to a non-interactive backend
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib.animation import PillowWriter, FuncAnimation

# Environment
theta_start = {'coord': np.array([0, 0])}
theta_goal = {'coord': np.array([1, 1])}
centers = np.array([[0.5, 0.5], [0.3, 0.7]])
radii = np.array([0.3, 0.2])

# Parameters
epsilon = 0.1
delta = 0.1
N = 1000

# Initialize figure
fig, ax = plt.subplots()
ax.grid(True)
ax.set_xlim(0, 1)
ax.set_ylim(0, 1)
ax.set_aspect('equal', adjustable='box')

# Draw obstacles

for idx in range(len(radii)):
    circle = Circle(centers[:, idx], radii[idx], color=[0.5, 0.5, 0.5], alpha=0.7)
    ax.add_patch(circle)

# Plot start and goal
ax.plot(0, 0, 'ko', markerfacecolor='k')
ax.plot(1, 1, 'ko', markerfacecolor='k')

# Initialize tree
theta_start['parent'] = None
G = [theta_start]
final_path_plotted = False

def update(frame):
    global G, final_path_plotted
    if frame == 0 or final_path_plotted:
        return

    # Sample random joint position
    theta_rand = np.random.rand(2)

    # Find node in G nearest to theta_rand
    dist = [np.linalg.norm(node['coord'] - theta_rand) for node in G]
    theta_near_index = np.argmin(dist)
    theta_near = G[theta_near_index]

    # Take a step from theta_near towards theta_rand
    vec_to_rand = theta_rand - theta_near['coord']
    dist_to_rand = np.linalg.norm(vec_to_rand)

    theta_new = {}
    if dist_to_rand < delta:
        theta_new['coord'] = theta_rand
    else:
        theta_new['coord'] = theta_near['coord'] + delta * vec_to_rand / dist_to_rand

    # Check if theta_new is collision-free
    collision = False
    for jdx in range(len(radii)):
        center = centers[:, jdx]
        radius = radii[jdx]
        if np.linalg.norm(theta_new['coord'] - center) < radius:
            collision = True
            break

    if collision:
        return

    # If collision-free, add theta_new to tree with parent theta_near
    theta_new['parent'] = theta_near_index
    G.append(theta_new)

    # Plot node and edge
    ax.plot(theta_new['coord'][0], theta_new['coord'][1], 'o', color=[0.5, 0.5, 0.5], markerfacecolor=[0.5, 0.5, 0.5])
    ax.plot([theta_near['coord'][0], theta_new['coord'][0]], [theta_near['coord'][1], theta_new['coord'][1]], 'k-', linewidth=2)

    # If goal is close enough to the last node in G, plot the final path
    if np.linalg.norm(G[-1]['coord'] - theta_goal['coord']) < epsilon:
        next_theta = G[-1]
        while next_theta['parent'] is not None:
            prev_theta = G[next_theta['parent']]
            line, = ax.plot([next_theta['coord'][0], prev_theta['coord'][0]], [next_theta['coord'][1], prev_theta['coord'][1]], 'orange', linewidth=3)
            next_theta = prev_theta

        # Add final path to the animation
        final_path_plotted = True
        return line,


# Create the animation
ani = FuncAnimation(fig, update, frames=N, repeat=False)

# Save the animation
writer = PillowWriter(fps=20)
ani.save("RRT_2_obstacles.gif", writer=writer)

Result:

• Environment 3: One obstacle with \(\normalsize center \; 𝑐_1 = [0.2, 0.35]^𝑇 \; and \; radius \; 𝑟_1 = 0.2\). A second obstacle with \(\normalsize center \; 𝑐_2 = [0.5, 0.3]^𝑇 \; and \; radius \; 𝑟_2 = 0.2\). A third obstacle with \(\normalsize center \; 𝑐_3 = [0.7, 0.5]^𝑇 \; and \; radius \; 𝑟_3 = 0.2\)

Here we are declaring it a Baseline Algorithm for 3 obstacles. Later below we will discuss the differences between a baseline and Goal-bias algorithm and their pros-cons.

Baseline RRT Algorithm

Implementations

Python

Code

import numpy as np
import matplotlib
matplotlib.use('Agg')  # Set the backend to a non-interactive backend
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib.animation import PillowWriter, FuncAnimation

# Environment
theta_start = {'coord': np.array([0, 0])}
theta_goal = {'coord': np.array([1, 1])}
centers = np.array([[0.2, 0.5, 0.7], [0.35, 0.3, 0.5]])
radii = np.array([0.2, 0.2, 0.2])

# Parameters
epsilon = 0.1
delta = 0.1
N = 1000

# Initialize figure
fig, ax = plt.subplots()
ax.grid(True)
ax.set_xlim(0, 1)
ax.set_ylim(0, 1)
ax.set_aspect('equal', adjustable='box')

# Draw obstacles

for idx in range(len(radii)):
    circle = Circle(centers[:, idx], radii[idx], color=[0.5, 0.5, 0.5], alpha=0.7)
    ax.add_patch(circle)

# Plot start and goal
ax.plot(0, 0, 'ko', markerfacecolor='k')
ax.plot(1, 1, 'ko', markerfacecolor='k')

# Initialize tree
theta_start['parent'] = None
G = [theta_start]
final_path_plotted = False

def update(frame):
    global G, final_path_plotted
    if frame == 0 or final_path_plotted:
        return

    # Sample random joint position
    theta_rand = np.random.rand(2)

    # Find node in G nearest to theta_rand
    dist = [np.linalg.norm(node['coord'] - theta_rand) for node in G]
    theta_near_index = np.argmin(dist)
    theta_near = G[theta_near_index]

    # Take a step from theta_near towards theta_rand
    vec_to_rand = theta_rand - theta_near['coord']
    dist_to_rand = np.linalg.norm(vec_to_rand)

    theta_new = {}
    if dist_to_rand < delta:
        theta_new['coord'] = theta_rand
    else:
        theta_new['coord'] = theta_near['coord'] + delta * vec_to_rand / dist_to_rand

    # Check if theta_new is collision-free
    collision = False
    for jdx in range(len(radii)):
        center = centers[:, jdx]
        radius = radii[jdx]
        if np.linalg.norm(theta_new['coord'] - center) < radius:
            collision = True
            break

    if collision:
        return

    # If collision-free, add theta_new to tree with parent theta_near
    theta_new['parent'] = theta_near_index
    G.append(theta_new)

    # Plot node and edge
    ax.plot(theta_new['coord'][0], theta_new['coord'][1], 'o', color=[0.5, 0.5, 0.5], markerfacecolor=[0.5, 0.5, 0.5])
    ax.plot([theta_near['coord'][0], theta_new['coord'][0]], [theta_near['coord'][1], theta_new['coord'][1]], 'k-', linewidth=2)

    # If goal is close enough to the last node in G, plot the final path
    if np.linalg.norm(G[-1]['coord'] - theta_goal['coord']) < epsilon:
        next_theta = G[-1]
        while next_theta['parent'] is not None:
            prev_theta = G[next_theta['parent']]
            line, = ax.plot([next_theta['coord'][0], prev_theta['coord'][0]], [next_theta['coord'][1], prev_theta['coord'][1]], 'orange', linewidth=3)
            next_theta = prev_theta

        # Add final path to the animation
        final_path_plotted = True
        return line,


# Create the animation
ani = FuncAnimation(fig, update, frames=N, repeat=False)

# Save the animation
writer = PillowWriter(fps=20)
ani.save("Baseline_RRT.gif", writer=writer)

MATLAB

Code

clear
close all

% environment
theta_start.coord = [0; 0];
theta_goal.coord = [1; 1];
centers = [0.2, 0.5, 0.7; 0.35, 0.3, 0.5];
radii = [0.2, 0.2, 0.2];

% parameters
epsilon = 0.1;
delta = 0.1;
N = 1000;

% visualize environment
figure
grid on
hold on
axis([0, 1, 0, 1])
axis equal

for idx = 1:length(radii)
 viscircles(centers(:, idx)', radii(idx), 'Color', [0.5, 0.5, ...
 0.5]);
end

plot(0, 0, 'ko', 'MarkerFaceColor', 'k')
plot(1, 1, 'ko', 'MarkerFaceColor', 'k')

% initialize tree
theta_start.parent = 0;
G(1) = theta_start;

for idx = 1:N
 % stop if theta_new is close to theta_goal
 if norm(G(end).coord - theta_goal.coord) < epsilon
 break
 end

 % sample random joint position
 theta_rand = rand(2,1);

 % find node in G nearest to theta_rand
 dist = zeros(length(G), 1);
 for jdx = 1:1:length(G)
 dist(jdx) = norm(G(jdx).coord - theta_rand);
 end
 [~, theta_near_index] = min(dist);
 theta_near = G(theta_near_index);

 % take a step from theta_near towards theta_rand
 vec_to_rand = theta_rand - theta_near.coord;
 dist_to_rand = norm(vec_to_rand);

 if dist_to_rand < delta
 theta_new.coord = theta_rand;
 else
 theta_new.coord = theta_near.coord + delta * ...
 vec_to_rand/dist_to_rand;
 end

 % check if theta_new is collision free
 collision = false;
 for jdx = 1:length(radii)
 center = centers(:, jdx);
 radius = radii(jdx);
 if norm(theta_new.coord - center) < radius
 collision = true;
 end
 end

 if collision
 continue
 end

 % if collision free, add theta_new to tree with parent theta_near
 theta_new.parent = theta_near_index;
 G = [G, theta_new];

 % plot node and edge
 plot(theta_new.coord(1), theta_new.coord(2), 'o', 'Color', [0.5, ...
 0.5, 0.5], 'MarkerFaceColor', [0.5, 0.5, 0.5])
 line([theta_near.coord(1), theta_new.coord(1)], ...
 [theta_near.coord(2), theta_new.coord(2)], 'Color', 'k', 'LineWidth', ...
 2);
end

% work backwards from the final node to the root of the tree
next_theta = G(end);
while next_theta.parent ~= 0
 prev_theta_idx = next_theta.parent;
 prev_theta = G(prev_theta_idx);
 line([next_theta.coord(1), prev_theta.coord(1)], ...
 [next_theta.coord(2), prev_theta.coord(2)], 'Color', [1, 0.5, ...
 0], 'LineWidth', 3);
 next_theta = prev_theta;
end

Result:

We can see the trajectory plots in the above figures. Here the black lines and gray dots show the tree 𝐺, while the orange line is the final motion plan from 𝜃𝑠𝑡𝑎𝑟𝑡 to a point close to the goal \(\normalsize (\epsilon ≤ 0.1)\). Each time we run your RRT code you should get a different solution: RRT builds the tree through random sampling.

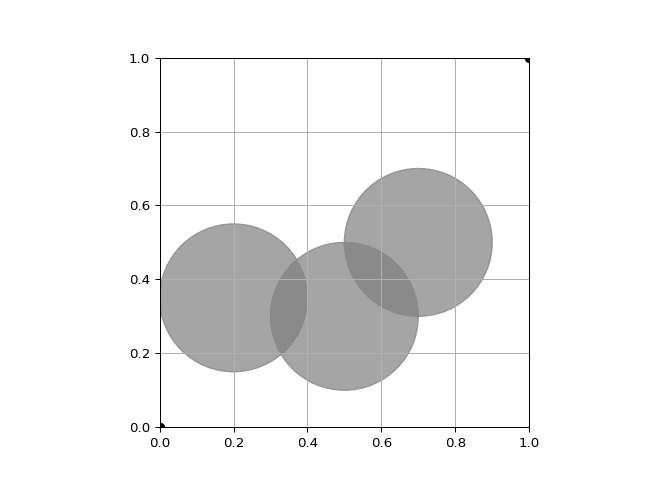

Goal-Bias RRT Algorithm

This version will sample the goal more frequently (let’s refer to this as goal bias). For goal bias, with probability \(\normalsize 0.2\) set \(\normalsize \theta_{rand}\) as \(\normalsize \theta_{goal}\). Otherwise sample randomly as normal. Then we run our code 10 times for baseline and 10 times for goal bias.

Thus we write down how many samples it takes on average to find a motion plan. Which approach is more sample-efficient: baseline or goal bias?

Let us check the implementation and results.

Implementations

Python

Code

import numpy as np
import matplotlib
matplotlib.use('Agg')  # Set the backend to a non-interactive backend
import matplotlib.pyplot as plt
from matplotlib.patches import Circle
from matplotlib.animation import PillowWriter, FuncAnimation

# Environment
theta_start = {'coord': np.array([0, 0])}
theta_goal = {'coord': np.array([1, 1])}
centers = np.array([[0.2, 0.5, 0.7], [0.35, 0.3, 0.5]])
radii = np.array([0.2, 0.2, 0.2])

# Parameters
epsilon = 0.1
delta = 0.1
N = 1000

# Initialize figure
fig, ax = plt.subplots()
ax.grid(True)
ax.set_xlim(0, 1)
ax.set_ylim(0, 1)
ax.set_aspect('equal', adjustable='box')

# Draw obstacles
for idx in range(len(radii)):
    circle = Circle(centers[:, idx], radii[idx], color=[0.5, 0.5, 0.5], alpha=0.7)
    ax.add_patch(circle)

# Plot start and goal
ax.plot(0, 0, 'ko', markerfacecolor='k')
ax.plot(1, 1, 'ko', markerfacecolor='k')

# Initialize tree
theta_start['parent'] = None
G = [theta_start]
final_path_plotted = False

def update(frame):
    global G, final_path_plotted
    if frame == 0 or final_path_plotted:
        return

    # Sample random joint position
    if np.random.rand() < 0.2:
        theta_rand = theta_goal['coord']
    else:
        theta_rand = np.random.rand(2)


    # Find node in G nearest to theta_rand
    dist = [np.linalg.norm(node['coord'] - theta_rand) for node in G]
    theta_near_index = np.argmin(dist)
    theta_near = G[theta_near_index]

    # Take a step from theta_near towards theta_rand
    vec_to_rand = theta_rand - theta_near['coord']
    dist_to_rand = np.linalg.norm(vec_to_rand)

    theta_new = {}
    if dist_to_rand < delta:
        theta_new['coord'] = theta_rand
    else:
        theta_new['coord'] = theta_near['coord'] + delta * vec_to_rand / dist_to_rand

    # Check if theta_new is collision-free
    collision = False
    for jdx in range(len(radii)):
        center = centers[:, jdx]
        radius = radii[jdx]
        if np.linalg.norm(theta_new['coord'] - center) < radius:
            collision = True
            break

    if collision:
        return

    # If collision-free, add theta_new to tree with parent theta_near
    theta_new['parent'] = theta_near_index
    G.append(theta_new)

    # Plot node and edge
    ax.plot(theta_new['coord'][0], theta_new['coord'][1], 'o', color=[0.5, 0.5, 0.5], markerfacecolor=[0.5, 0.5, 0.5])
    ax.plot([theta_near['coord'][0], theta_new['coord'][0]], [theta_near['coord'][1], theta_new['coord'][1]], 'k-', linewidth=2)

    # If goal is close enough to the last node in G, plot the final path
    if np.linalg.norm(G[-1]['coord'] - theta_goal['coord']) < epsilon:
        next_theta = G[-1]
        while next_theta['parent'] is not None:
            prev_theta = G[next_theta['parent']]
            line, = ax.plot([next_theta['coord'][0], prev_theta['coord'][0]], [next_theta['coord'][1], prev_theta['coord'][1]], 'orange', linewidth=3)
            next_theta = prev_theta

        # Add final path to the animation
        final_path_plotted = True
        return line,


# Create the animation
ani = FuncAnimation(fig, update, frames=N, repeat=False)

# Save the animation
writer = PillowWriter(fps=20)
ani.save("Goal_bias_RRT.gif", writer=writer)

MATLAB

Code

clear
close all
% Environment initiation
theta_start.coord = [0; 0];
theta_goal = [1; 1];

% Obstacle Parameters
% First obstacle center and radius
center = [0.2; 0.35];
radius = 0.2;
% Second obstacle center and radius
center2 = [0.5; 0.3];
radius2 = 0.2;
% Third obstacle center and radius
center3 = [0.7; 0.5];
radius3 = 0.2;

% Specifying parameters
epsilon = 0.1;
delta = 0.1;
N = 1000;

% Visualizing the environment
figure
grid on
hold on
axis([0, 1, 0, 1])
axis equal
viscircles(center', radius, 'Color', [0.5, 0.5, 0.5]);
viscircles(center2', radius2, 'Color', [0.7, 0.3, 0.3]); % Visualizing the second obstacle
viscircles(center3', radius3, 'Color', [0.3, 0.5, 0.7]); % Visualizing the third obstacle
plot(0, 0, 'ko', 'MarkerFaceColor', 'k')
plot(1, 1, 'ko', 'MarkerFaceColor', 'k')

% Initializing the tree
theta_start.parent = 0;
G(1) = theta_start;

for idx = 1:N

    % Stop if the last node in G is close to theta_goal
    if norm(G(end).coord  - theta_goal) < epsilon
        break
    end

    % sample random joint position: probability 0.2

    if rand() < 0.2
        theta_rand = theta_goal;
    else
        theta_rand = rand(2,1);
    end

    % find node in G nearest to theta_rand
    min_dist = inf;
    theta_near_index = 0;

    for jdx = 1:length(G)
        coord = G(jdx).coord;
        dist = norm(theta_rand - coord);
        if dist < min_dist
            min_dist = dist;
            theta_near_index = jdx;
        end
    end

    theta_near = G(theta_near_index);
    % take a step from theta_near towards theta_rand
    vec_to_rand = theta_rand - theta_near.coord;
    dist_to_rand = norm(vec_to_rand);
    if dist_to_rand < delta
        theta_new.coord = theta_rand;
    else
        theta_new.coord = theta_near.coord + delta * ...
        vec_to_rand/dist_to_rand;
    end

    % check if theta_new is collision free with all obstacles
    dist_to_obs1 = norm(theta_new.coord - center);
    dist_to_obs2 = norm(theta_new.coord - center2);
    dist_to_obs3 = norm(theta_new.coord - center3);
    if dist_to_obs1 < radius || dist_to_obs2 < radius2 || dist_to_obs3 < radius3
        continue
    end

    % if collision free, add theta_new to tree with parent theta_near
    theta_new.parent = theta_near_index;
    G = [G, theta_new];

    % plot node and edge
    plot(theta_new.coord(1), theta_new.coord(2), 'o', 'Color', [0.5, 0.5, 0.5], ...
    'MarkerFaceColor', [0.5, 0.5, 0.5])
    line([theta_near.coord(1), theta_new.coord(1)], [theta_near.coord(2), ...
    theta_new.coord(2)], 'Color', 'k', 'LineWidth', 2);
    drawnow

end

% work backwards from the final node to the root of the tree
child_theta = G(end);
while child_theta.parent ~= 0

    parent_theta_index = child_theta.parent;
    parent_theta = G(parent_theta_index);
    line([child_theta.coord(1), parent_theta.coord(1)], ...
        [child_theta.coord(2), parent_theta.coord(2)], ...
        'Color', [1, 0.5, 0], 'LineWidth', 3);
    child_theta = parent_theta;
end

Result:

The samples 𝑁 across ten runs with baseline and goal bias are tabulated below.

run	baseline	goal bias
1	254	225
2	363	169
3	318	150
4	590	143
5	352	249
6	359	166
7	202	251
8	267	162
9	440	183
10	226	313

On average, the baseline required 337 samples to reach a valid motion plan, while goal bias needed 201 samples. For Environment 3 the evidence suggests that biasing the samples towards 𝜃𝑔𝑜𝑎𝑙 decreases the total number of samples and causes RRT to reach a solution faster. Intuitively, this is because the tree is trying to move in the direction of the goal more frequently.

This is particularly advantageous when the robot is in free space (or has passed the obstacles) and should move directly towards the goal. The code snippet required to implement goal bias is shown below:

Implementations

Python

# Sample random joint position: probability 0.2
if np.random.rand() < 0.2:
    theta_rand = theta_goal['coord']
else:
    theta_rand = np.random.rand(2)

MATLAB

Code

% sample random joint position: probability 0.2

if rand() < 0.2
    theta_rand = theta_goal;
else
    theta_rand = rand(2,1);
end

Sample Efficiency Comparison:

• Goal-biased RRT seemed to be more sample-efficient in open or less complex environments because it directs its exploration towards the goal, thereby potentially finding a path with fewer samples.

• In contrast, the baseline RRT might be more effective in highly cluttered environments where a direct path to the goal is less likely, and a more uniform exploration of the space is beneficial.

We need to understand the key differences between the two methods and their impact on sample efficiency:

• Baseline RRT: This approach uniformly samples the entire configuration space without any bias towards the goal. It explores the space in a more scattered manner, which can be beneficial in complex environments with many obstacles. However, it might take more samples to find a path to the goal, especially in large or open spaces, because the sampling is entirely random and not directed towards the goal.

• Goal-Biased RRT: In this approach, the algorithm is biased to sample near the goal state more frequently. This bias can significantly reduce the number of samples required to find a path to the goal in many cases, especially in less complex environments or when the goal is not surrounded by obstacles. The downside is that in highly cluttered environments, this bias might lead to more samples being wasted near the goal where paths are infeasible.
